Victron Energy Phoenix Inverter 12/250 230V

Pure sine waveform output that will power any 240V electrical appliance with none of the problems associated with modified sine wave inverters.

Able to provide a very high start-up power output, easily powering-up difficult loads such as computers and low power electrical tools.

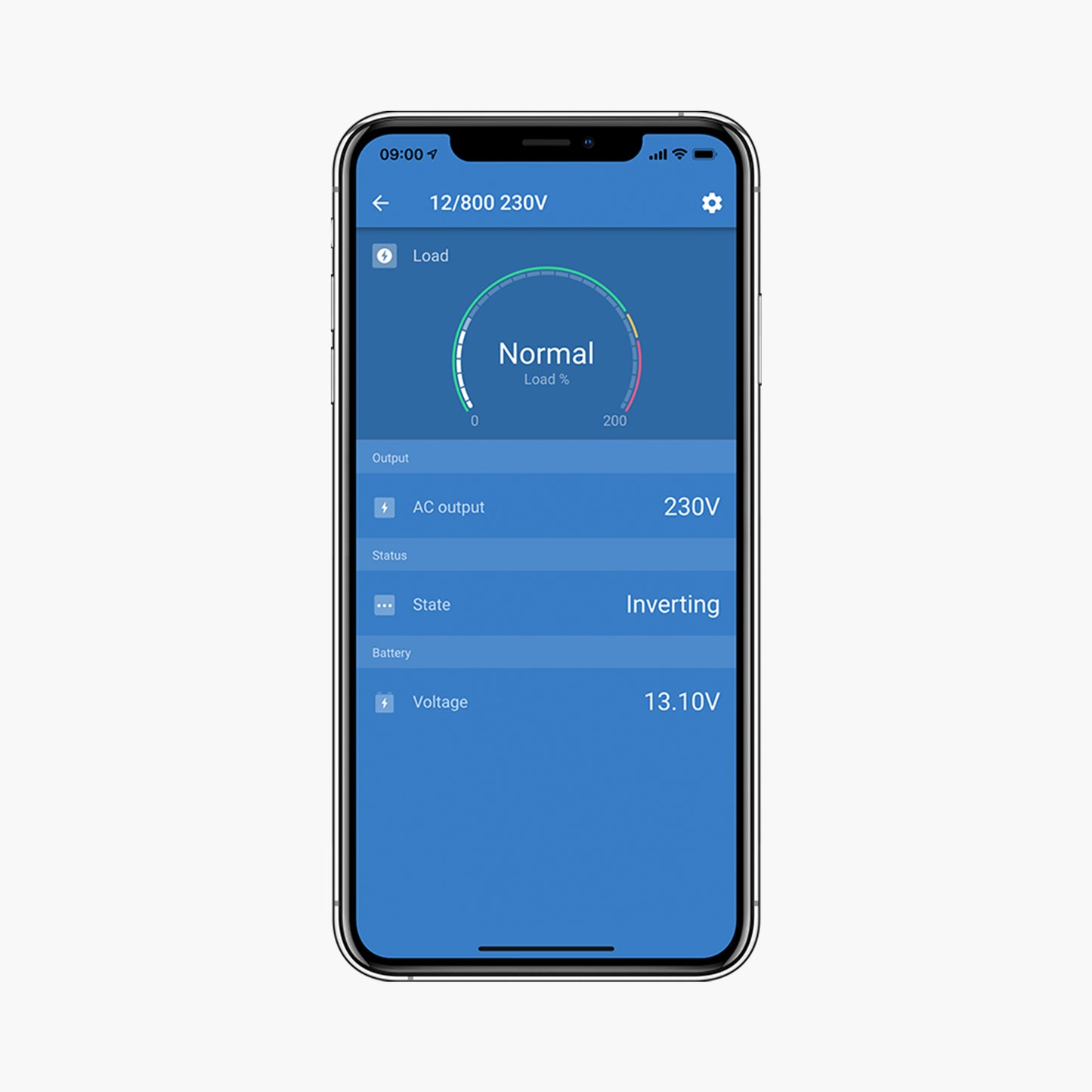

VE.Direct port that enables communication with external devices. By connecting an optional VE.Direct Bluetooth Smart dongle (sold separately) to the VE.Direct port you can configure and monitor the inverter from your Apple or Android device via the Victron Connect app.

260 mm x 165 mm x 86 mm

2.43 kg

- Input voltage rating: 9.2 - 17.0VDC
- Output voltage: 230VAC +/- 0.3%
- Continuous AC power at 25°C: 250VA
- Continuous power at 25°C/40°C: 200/175W
- Peak power: 400W
- Max. efficiency: 87%
- No-load power consumption: 4.2W
- Default zero load power in ECO mode: 0.8W
- Operating temperature: -40°C to +65°C (fan assisted cooling)
- DC low shut down: 9.3V (adjustable)
- Dynamic (load dependent) DC low shut down: Fully configurable
- DC low restart and alarm: 10.9VDC (adjustable)
- Battery charged detect: 14.0V (adjustable)
- Cable connection: Screw clamp terminals (cable size 10mm² max.)
- Output socket: BS1363 UK 3-pin socket
- Remote On/Off connection: 2 pole connector
- Ingress Protection rating: IP21
- Body material: Steel with plastic cover (blue RAL5012)
- Mounting holes: x4 on sides of chassis

See datasheet for additional details
