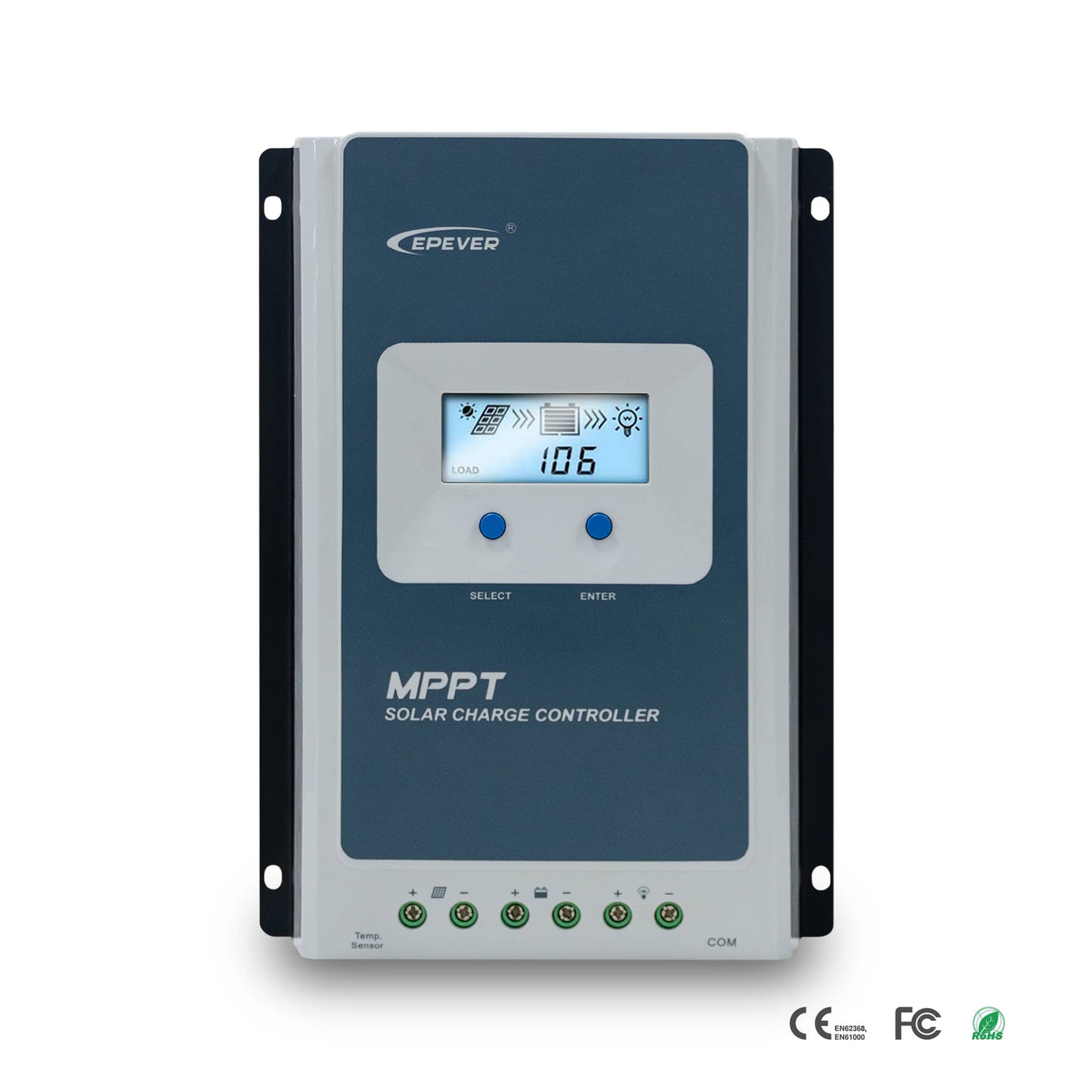

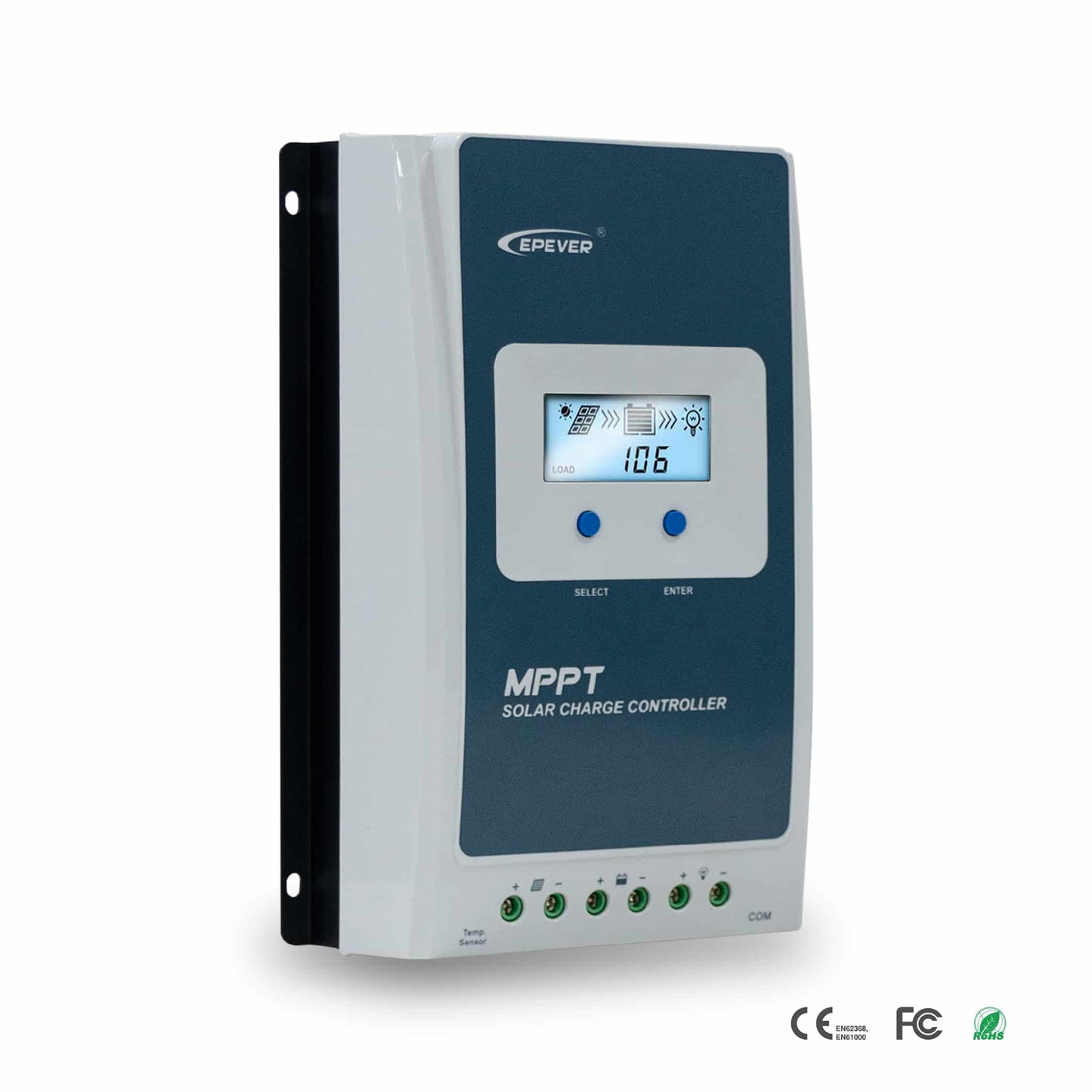

EPEVER Tracer MPPT Solar Charge Controller (10A~40A)

Reliable MPPT series from EPEVER and compatible with all our panels.

The EPEVER Tracer-AN (10A~40A) series charge controller adopts MPPT (Maximum Power Point Tracking) technology. The maximum power point (MPP) of the solar array is identified to maximise solar energy capture and can generate up to 30% more power when compared to PWM charge controllers.

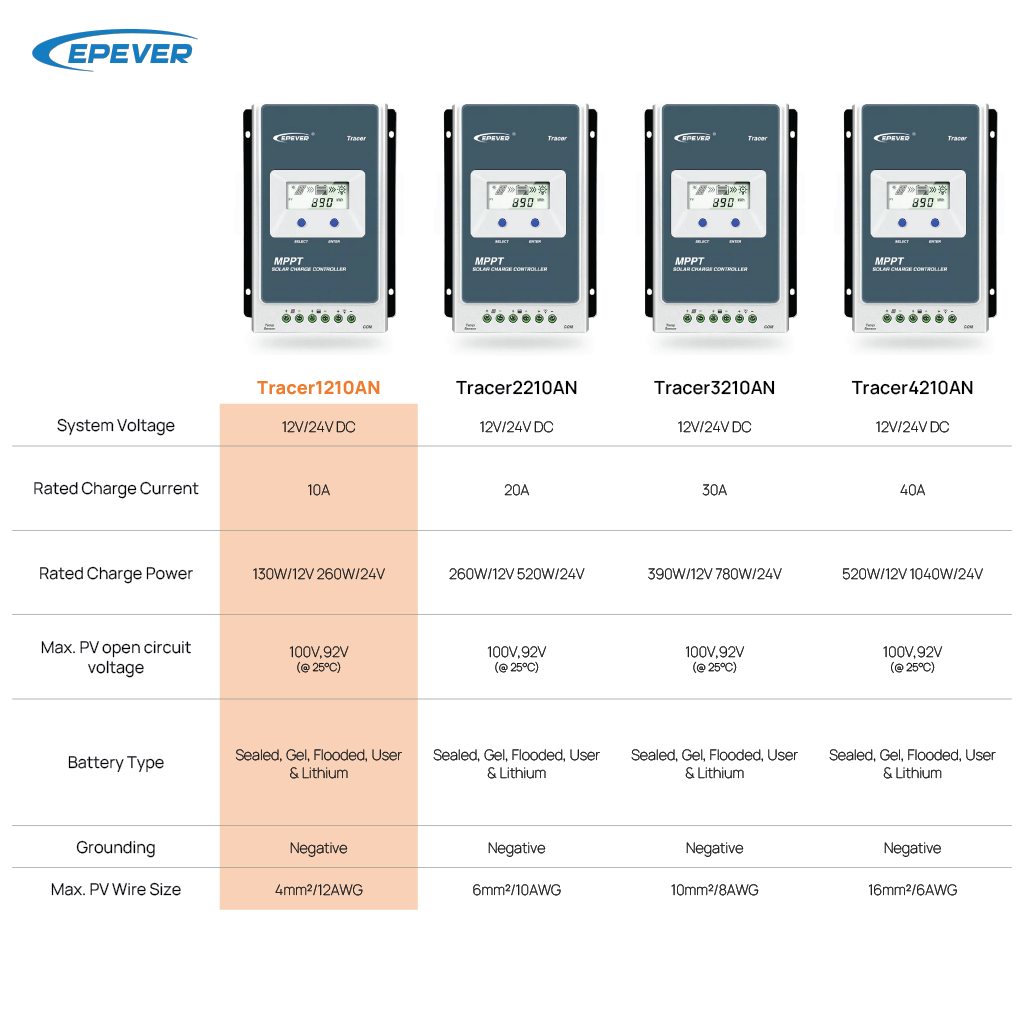

Manufacturer compatibility guidelines:

- 10A model: 12V battery (or multiple wired in parallel) can accept max  195W. 24V battery (or multiple wired in parallel) can accept max 390W.

- 20A model: 12V battery (or multiple wired in parallel) can accept max  390W. 24V battery (or multiple wired in parallel) can accept max 780W.

- 30A model: 12V battery (or multiple wired in parallel) can accept max  580W. 24V battery (or multiple wired in parallel) can accept max 1170W.

- 40A model: 12V battery (or multiple wired in parallel) can accept max  780W. 24V battery (or multiple wired in parallel) can accept max 1560W.

When installing a charge controller, always connect the battery first. To understand details on how many panels you can connect to the charge controller please see our Installation Tips.
